Dirt King LT Trail Runner Elite Kit - 03-24 4Runner / 07-14 FJ Cruiser

Upgrade your off-road experience with the Dirt King LT Trail Runner Kit, a comprehensive solution for transforming your vehicle into a high-performance off-road machine while maintaining on-road comfort and reliability. This expertly designed system optimizes suspension travel, tire clearance, and durability with precision-engineered components tailored for the Toyota 4Runner / FJ Cruiser. This kit adds 2” of width per side, allowing for more than a 30% increase in suspension travel while still being compatible with stock fenders.

• Front Wheel Travel: Up to 11.5"
• Rear Wheel Travel: Up to 25% increased wheel travel
• Amount of Lift: 0-3.5”
• Track Width: 2” wider per side
• Maximum Tire Size: 35”
• Maximum Backspacing: 4.75”
• Minimum Rim Size: 16”
• Coilover Shock Size: Dirt King Spec Coilovers
• Bump Stop Size: 2.0” x 2.0”

4WD
To achieve the full amount of travel on 4WD models you must install the 1” diff drop kit and machine the inner CV’s for more articulation.

Shocks
For the best performance and to achieve the full amount of travel you must purchase Dirt King's spec built shocks or have them custom built based on Dirt King's coil over spec sheet. You may also use 4Runner OEM replacement coil overs (Dirt King, King, Fox, Icon) with 1.5” wide lower eyelet spacers with ½” mounting holes, to achieve desired ride height you may need to increase preload or go to a higher spring rate. For the OEM replacement coil overs to achieve proper collapse length you will want to run a 3/8" spacer. These shocks will work but limit the amount of wheel travel. The OEM replacement coil overs include reservoir mounts that may not be compatible with Dirt King's double shear kit option. Dirt King's long travel kit is also tabbed to accommodate bypass shocks. The bypass shocks will allow for superior suspension dampening and tunability. To mount the bypasses Dirt King offers a weld on bypass shock hoop kit (DK-811710) that can be purchased separately. The bypass shock hoop kit requires welding and modifications to the frame. For extreme off-roading the kit has the ability to accept bump stops or bypass along with the coil overs. The use of bump stops will also require welding and modifications to the frame.

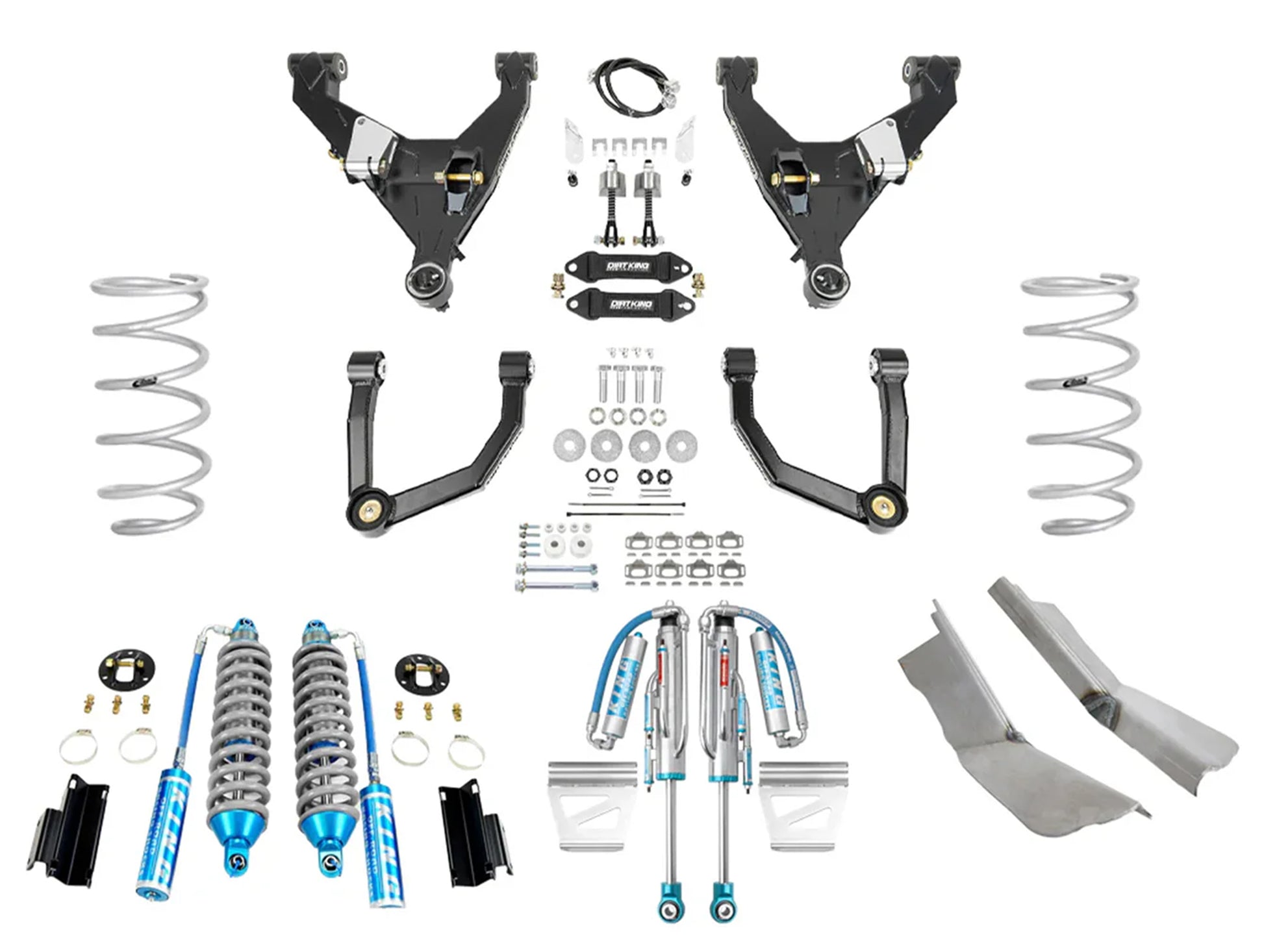

What's Included:

• +2" Long Travel Kit: Enhances off-road performance with an additional 2" width per side, supporting 35" tires and increasing suspension travel by over 25%.
• Alignment Cam Gussets: Reinforced chromoly plates prevent alignment issues caused by bent factory cam tabs, ensuring long-lasting stability.

• Spindle Gussets: The factory Toyota spindles commonly bend during extreme off-road use. Dirt King's spindle gussets solve this issue by reinforcing the problematic areas.
• +2" Long Travel Spec King Coilovers: Custom-tuned King Spec coilovers to deliver superior performance for both off-road adventures and daily drivability.
• 2.5 Rear 2 Tube Bypass Shock: King bypasses to deliver superior performance for both off-road adventures and daily drivability.
• 1" Differential Drop Kit (4WD): Lowers the front differential by 1", reducing CV angles to protect drivetrain components on lifted vehicles or those with long-travel suspensions.
• Eibach Pro-Lift-Kit +1" Rear Springs: Eibach Pro-Kit lift springs are the perfect performance upgrade with providing 1" of lift.
• Axle Assemblies (4WD)
• All Necessary Mounting Hardware
• Dirt King Sticker Pack
• Installation Instructions

Compatibility

• 2003-2024 Toyota 4Runner 2WD / 4WD
• 2007-2014 FJ Cruiser 2WD / 4WD

*Welding required for the spindle gussets & the alignment cam gussets.

*Not compatible with the factory sway bar.

*Rear suspension must be cycled to full compression to setup the lower shock mounts.

*Install by experienced fabricator is recommended.

*This product is designed to pair with OEM and Dirt King parts. Compatibility with other brands must be approved by the respective manufacturer.
